V2ZI

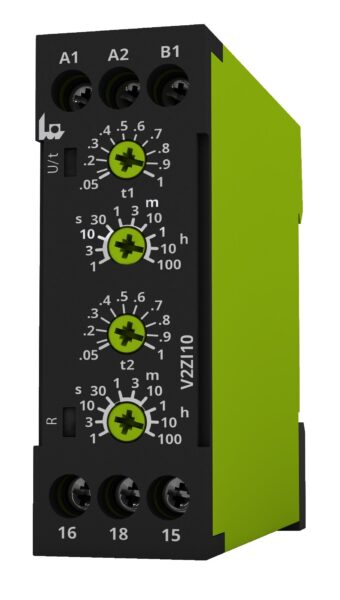

V2ZI10P 12-240V AC/DC, timerelay

  • Order.no.: 111275
  • Designation: 125210
  • Brand: Tele Haase

Clock function, starting with pulse, variable 1
With plug-in socket
Remote operation possible 1
Suitable for remote control
Pluggable on auxiliary contact block
Rated control supply voltage Us at AC 50HZ 240 – 12 V
Rated control supply voltage Us at AC 60HZ 240 – 12 V
Rated control supply voltage Us at DC 240 – 12 V
Voltage type for actuating AC/DC
Time range 360000 – 0.05 s
Function delay-on energization
Number of outputs, delayed, change-over contact 1
Outputs, reversible delayed/undelayed
With semiconductor output
Width 22.5 mm
Height 67 mm
Function delay on de-energization
Depth 76 mm
Type of electric connection Plug-in connection
Function floating contact on energization
Function floating contact on de-energization
Function star-delta
Function pulse shaping
Function flashing, starting with pause, fixed time
Function flashing, starting with pulse, fixed time
Clock function, starting with pause, variable 1
