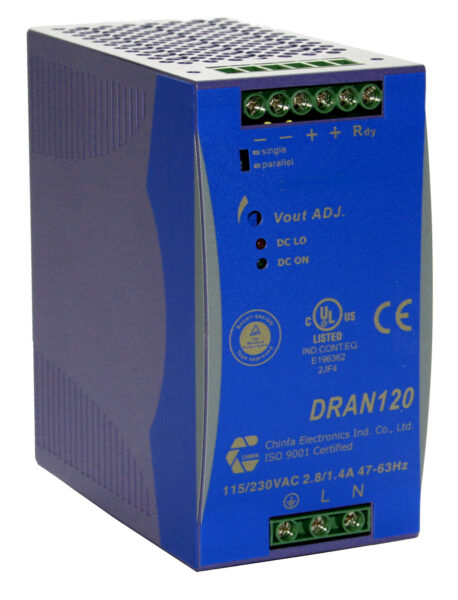

DRAN 120

Chinfa

DRAN120-12A, AC/DC DIN 120W-12V

  • P.F.C. function
  • Parallel function available (switch)
  • Short circuit protection
Order.no.: 65954 E.no: E5201689 Designation: DRAN120-12A Brand: Chinfa

Rated supply voltage at AC 50 Hz 230 – 115 V
Rated supply voltage at DC 375 – 210 V
Width 64 mm
Height 143.5 mm
Power output 120 W
Max. output current 1 10 A
Depth 123.6 mm
Type of electric connection Screw connection
Rail mounting possible 1
Degree of protection (IP) IP20
Secondary voltage adjustable 1
Short-circuit-proof 1
